HDMI ESD / Booster (HDMI2C4-5F2)

$ 1.80
SKU HDMI2C4-5F2
HDMI ESD / Booster (HDMI2C4-5F2)
  • For HDMI™ 1.4, 2.0 & 2.1 application, operating temperature from -40 to 85 °C
  • 8 kV contact ESD protection on connector side (IEC 61000-4-2 level 4)
  • DDC (I2C) buffers with level shifter and backdrive protection
  • High integration level in 1 package
  • DDC (I2C) link protection, bi-directional signal conditioning circuit and dynamic pull-up
  • HPD pull down, signal conditioning with level shifter and backdrive protection
  • Enable function available for power consumption control and optimization (=ENABLE_IC)
  • 325 mA Short-circuit protection on 5V output with backdrive protection

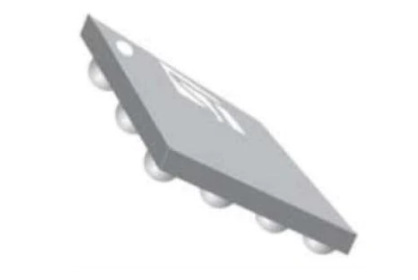

  • Proposed in 500 µm pitch WLCSP package 12 bumps
